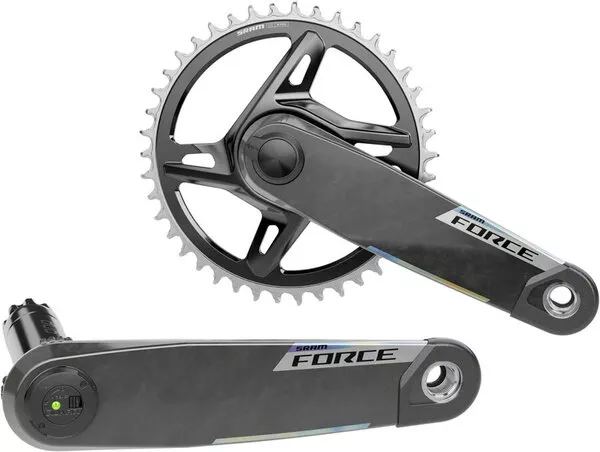

Capture hidden power, without compromise. The SRAM Force XPLR 1x Wide Power Meter Crankset features an integrated, spindle-based power meter (E1) offering left-leg measurement to calculate total wattage, with ±1.5% accuracy. With carbon arms, X-SYNC chainring and long-lasting battery life, it’s built for serious all-road and gravel riders.
Key Features:
Spindle-integrated power meter measures left-leg power to calculate total watts
±1.5% accuracy reliable across temp and riding conditions
Long battery life (400+ hours on user-replaceable AAA lithium)
IPX7 waterproof rated to 1?m for 30?minutes
Carbon crank arms for strength and lightweight performance
X-SYNC narrow-wide aluminum chainring ensures maximum chain retention
47.5?mm chainline with 6.5?mm offset—ideal for single-ring drivetrains
SRAM DUB spindle adds durability and broad bottom-bracket compatibility
Available in 160mm, 165mm, 170mm, 172.5mm, and 175mm lengths—all with 42T chainring
Product Variants:
00.6118.737.000 – 160?mm crank length
00.6118.737.001 – 165?mm
00.6118.737.003 – 170?mm
00.6118.737.004 – 172.5?mm
00.6118.737.005 – 175?mm
Product Specs:
Crank Type – 1x Wide Power Meter Crankset with spindle-based meter
Crank Arm Material – Carbon
Chainring – 42T X-SYNC narrow/wide, 8-bolt direct mount
Speed Compatibility – SRAM 12-speed and 13-speed XPLR
Chain Compatibility – SRAM Eagle, T-Type, Road Flattop D1/E1
Chainline – 47.5?mm
Battery – AAA lithium (user-replaceable)
Battery Life – ~400+ hours
Protection – IPX7 waterproof rating
Spindle Standard – DUB
Weight – approx. 40?g over standard crankset
Q-Factor – ~150?mm
Ideal For:
Gravel and all-road riders wanting integrated power measurement
Cyclists streamlining their setup with single-ring simplicity and proven accuracy
Users who want reliable battery life and weather-ready performance in rugged conditions
Track, train, and perform—this SRAM Force XPLR power meter crankset brings pro-level data and durability to every ride.
